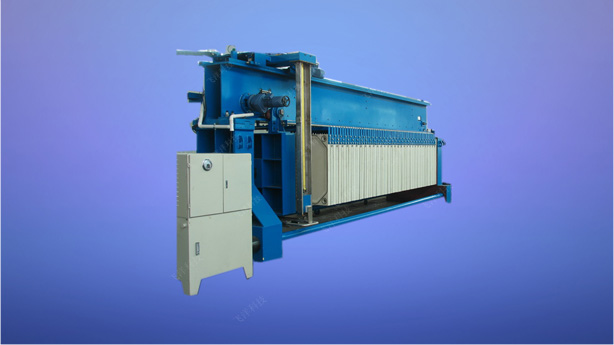

FLYING Fully Automatic Filter Press is the high performance solution for producing high dry solids filter cake, side bar or overhead beam design, With Plate Shifting & Plate Shaker For Auto cake Discharge Along With PLC Based Electrical Control Panel & Pneumatically Operated Control Valves, Flow Sensor and Hydraulically Operated Bomb Door (Drip Tray). FLYING filter press considered all automatic factors for your sludge project, In Filter Press Initial filtration process takes place with the push of a button. All processes (filtration-squeezing-washing cake or air blow cake-discharge cake) will be finished automatic by control center of filter press. The flow meter indicates the minimum flow rate of filtrate which is strictly related to the end of a cycle, A PLC controls the phases and cycle times for all the filter press functions including operation of the ancillary equipment. Most advanced automation available, from fully automatic plate shifting and cloth washing, Safety light curtains and automatic conveyor system.

Special Features:

>  Zero downtime
>  Designs pressure: 7bar up to 16bar
>  Electric hydraulic closure
>  Recessed or membrane squeezing style filter plates
>  Save 100 % of Labor Cost.
>  Achieve final solid consistency at outlet up to 75%.
>  Shortest cycle time: 8 to 30 minutes.
>  Fully Automatic cycles
>  Manual button option
>  PLC based controls
>  Up to 2000 x 2000mm filter press size

Application:
Excellent for ETP-Plants, Granites, Marble & Ceramic Industries, Gypsum, Bentonite, Crystalline Salts, Pigments, Dry precipitates, Sludges generated from Galvanizing Plants containing Chromium, Zinc, Aluminum oxide, Copper, Nickel or calcium carbonate and many more.
Range of capacities and filtration areas: Filtration areas range from 5 Square meters to 560square meters.
